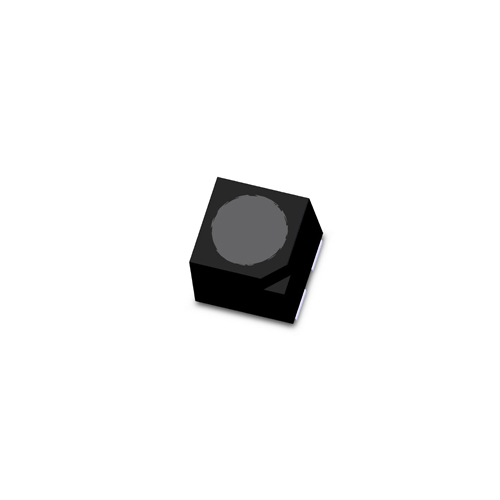

RS-1415MBAR Smallest outdoor SMD LED,high definition for outdoor P3 application,common-cathode design
FEATURES
①Bottom PINs new design to make the glue filling easily, better SMT flatness and avoid the consistency difference issue easily;
②Innovative package structure and better reliability;
③Matte surface ensure high contrast.
Product details
PRODUCT PARAMETERS
Product Name | Color | IF(mA) TEST | λd(nm) Typ | Iv(mcd) Typ | Vf(V) Typ | View angle (deg.) |
RS-1415MBAR | 15 | 622 | 360 | 2.1 | 110 | |
| 8 | 528 | 400 | 2.6 | 110 | ||
| 5 | 470 | 50 | 2.7 | 110 |
DIMENSIONS/UNIT（mm）
